Typical Applications

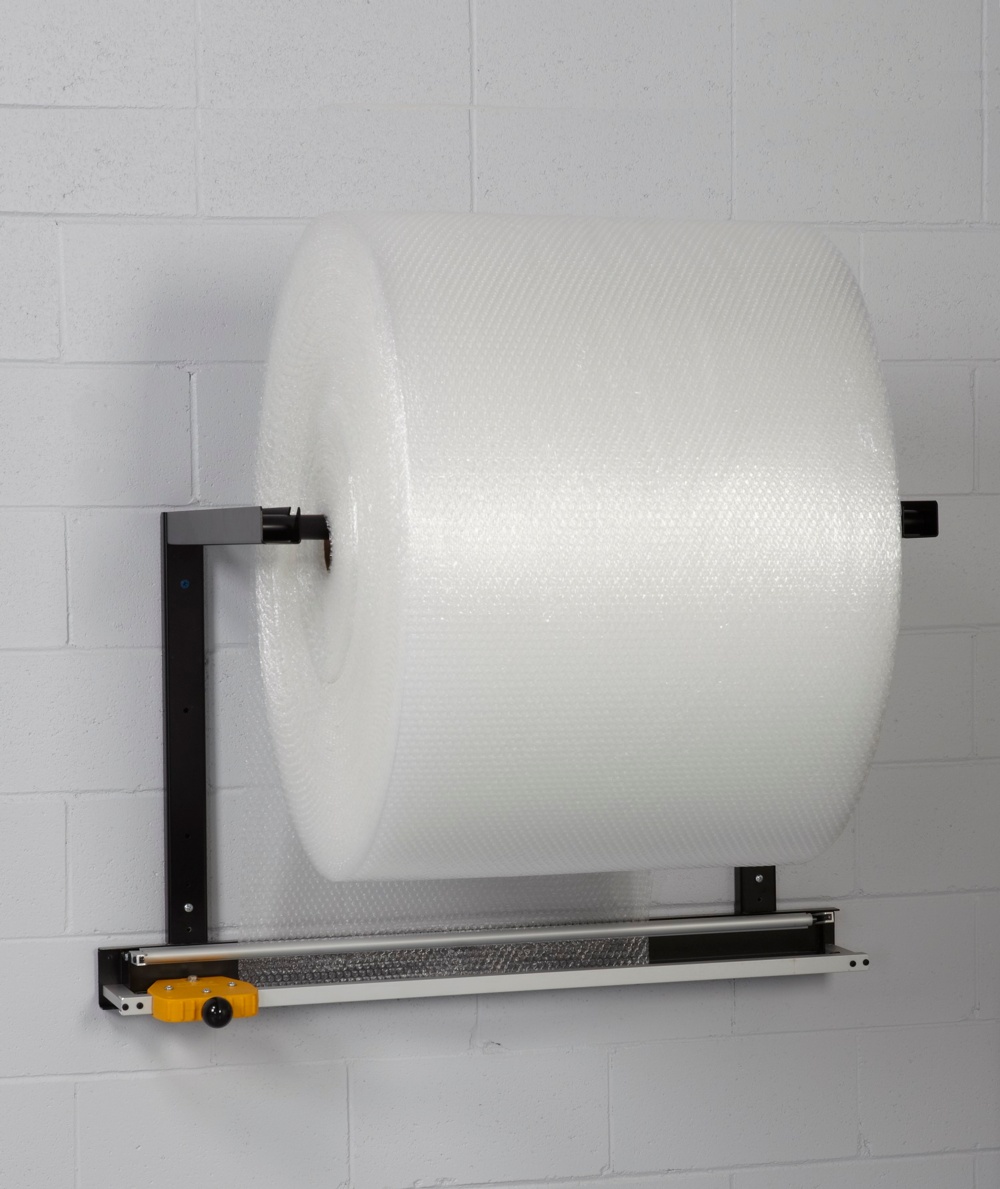

The Dehnco Wall Roll Stand is used to store rolls of material on any vertical surface to keep it off the floor or table. The base and uprights supports bolt into any flat surface. The cantilever arms are available to hold roll diameters up to 48-inches.
Rolls mount onto removable roll bar. The bar rests in sturdy notches in the arm. The system is a low cost way to put roll material within easy reach.
Stands are ruggedly constructed for long life.
Components
| Part # | Description |
|---|---|
| TRSEC-3612 | max roll width 24" - max diameter 24" used with economy cutter EC-2436 |
| TRSEC-3624 | max roll width 24" - max diameter 48" used with economy cutter EC-2436 |
| TRSEC-4812 | max roll width 36" - max diameter 24" used with economy cutter EC-3648 |
| TRSEC-4824 | max roll width 36" - max diameter 48" used with economy cutter EC-3648 |
| TRSRC-4412 | max roll width 30" - max diameter 24" used with economy cutter RC-3044 |
| TRSRC-4424 | max roll width 30" - max diameter 48" used with economy cutter RC-3044 |
| TRSRC-5412 | max roll width 40" - max diameter 24" used with economy cutter RC-4054 |
| TRSRC-5424 | max roll width 40" - max diameter 48" used with economy cutter RC-4054 |
| TRSRC-6412 | max roll width 50" - max diameter 24" used with economy cutter RC-5064 |
| TRSRC-6424 | max roll width 50" - max diameter 48" used with economy cutter RC-5064 |
General Specifications
- The Wall Roll Stand can be used with any Dehnco rotary shear/economy cutter or as a stand alone system.
- The Dehnco Wall Roll Stand will accommodate rolls of material up to 50" wide and up tp 48" in diameter.
- Stand is constructed of formed metal components which supports up to 100 pounds. It can be mounte on any flat surface.
- The uprights of the Wall Roll Stand are adjustable in height to allow the leading edge of the material to be at the most ergonomic position for the worker.
- Casters are available to make the wall roll stand stand portable.
