Typical Applications

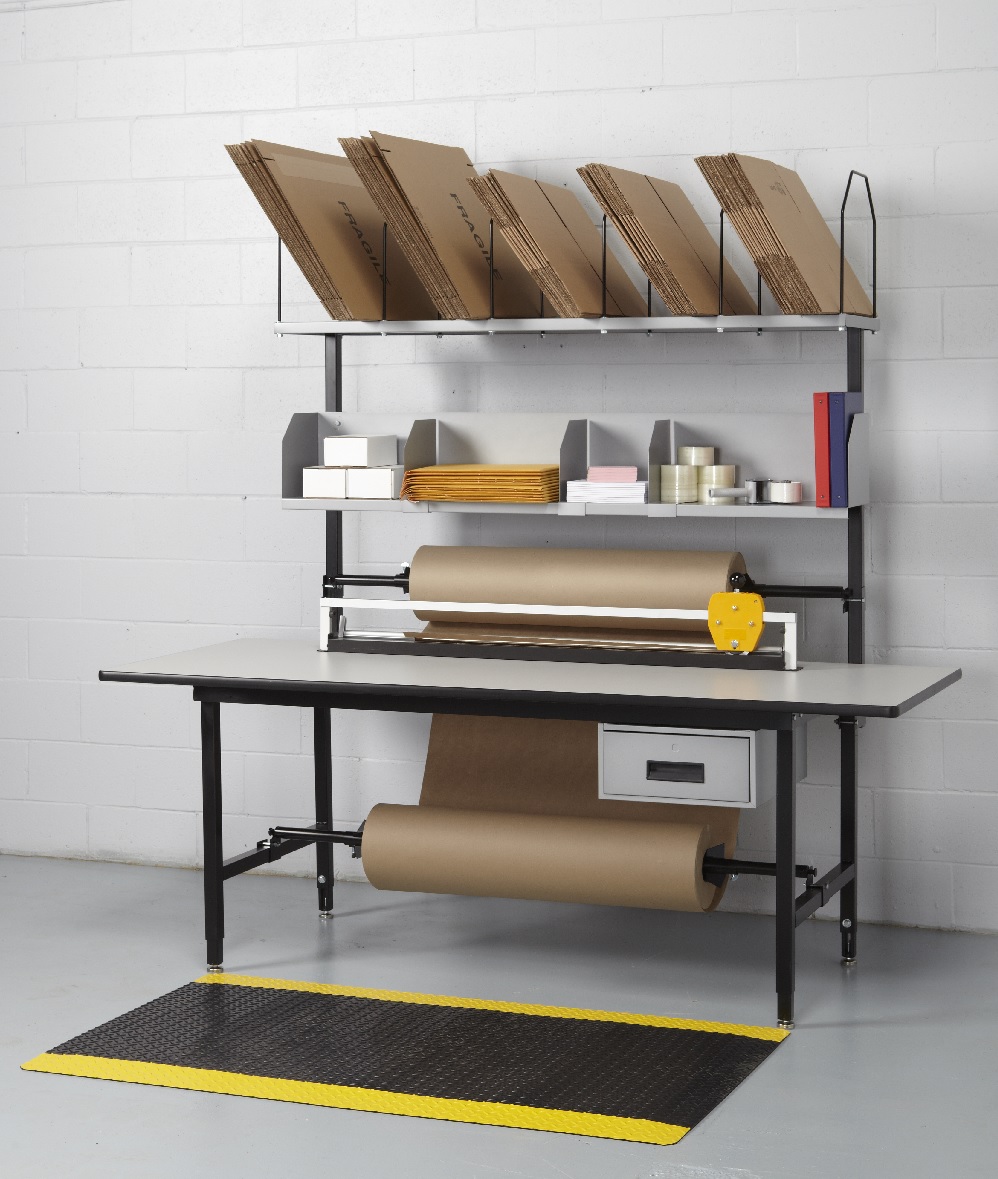

Dehnco Table Roll Storage Bar is used to store rolls of material off the floor or table top. The roll bar kits can be attached to tables to allow roll storage where it is needed. On Dehnco Tables, material roll bars are adjustable along the uprights or leg assemblies to make it easy for the worker to dispense sheets without bending or straining.
Components
| Part # | Description |
|---|---|
| MRSRB-3044 | max. roll width 30", 44" overall length |
| MRSRB-4054 | max. roll width 40", 54" overall length |
| MRSRB-5064 | max. roll width 50", 64" overall length |
| MRSRB-6074 | max. roll width 60-", 74" overall length |
| MRSRB-7286 | max. roll width 72", 86" overall length |
| MRSRB-8094 | max. roll width 80", 94" overall length |
General Specifications
- The Table Roll Bar can be used with any Dehnco rotary shear, AP "Advanced Performance" cutter or as a stand alone system.
- The Dehnco Table Roll Bar will accommodate rolls of material up to 72 " wide and 24" in diameter.
- Extra Roll Bar Kits can be added to the system
- Roll bar is constructed of 1 1/4", 16 gauge round steel tubing and supports up to 300 pounds. The kit comes with mounting brackets and 3-inch core retainers.
- Bars can be easily modified to fit custom size benches.
