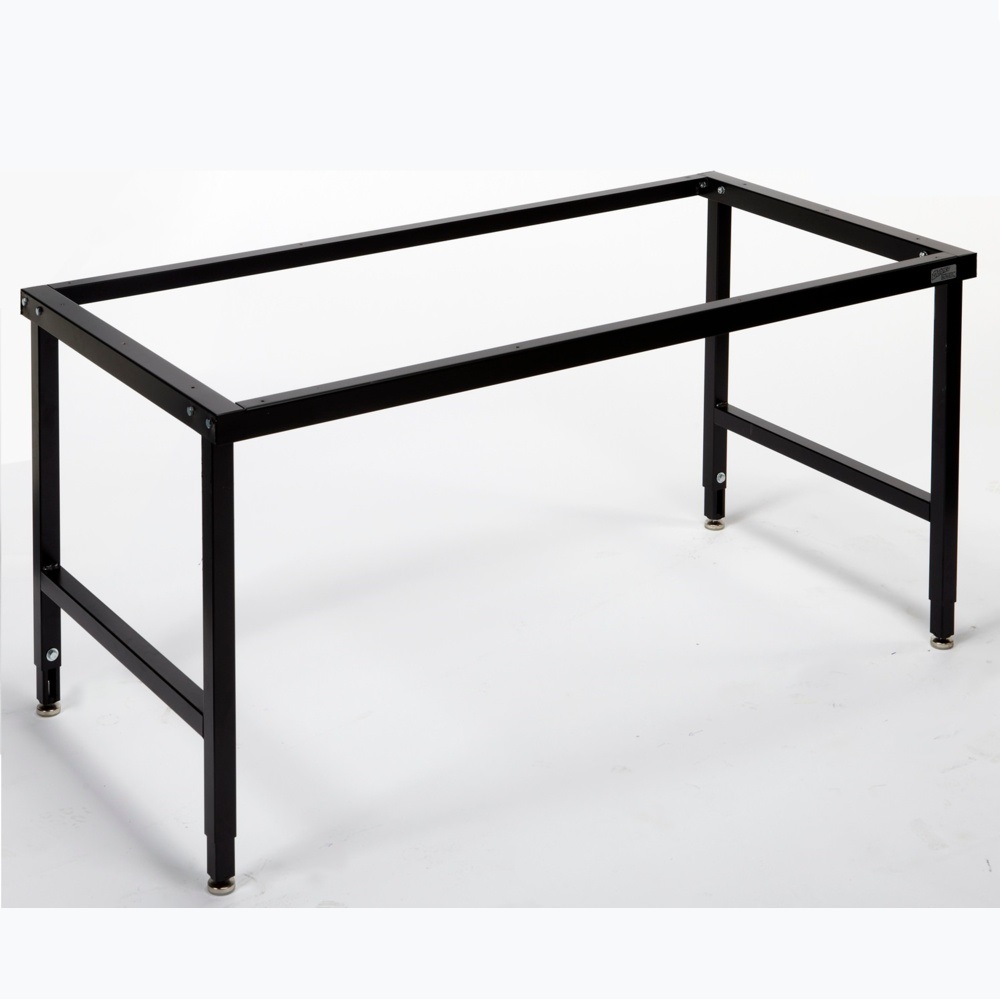

D-9005 Table Frames

Typical Applications

D-9005 Table Frames are primarily used when table tops are available without support frames. The standard frame assembly works with tops 32-inches x 72-inches or larger. Frames can be made to accommodate smaller size tables.

The top frames are made from 16-gauge u-channel and are welded on all four corners for strength. Pre-punched holes in the channel allow the frames to be securely mounted onto the table top.

The adjustable telescoping leg assemblies allow to bench to set at the proper working height. Leveling pads are provided in the telescoping member for fine adjustments.

A wide selection of modular parts is available to attach to the Table Frame to provide storage for various kinds of material and equipment.

General Specifications

• D-9005 Table Frames leg assemblies are made of 1 1/2-inch square tubular steel.
• The legs contain leveling screws to fine adjust for uneven floors.
• The Table Frames are adjustable in height from 29-inches to 36-inches.
• D-9005 Table Frames are provided to be used with various types of tops.
• Dehnco Table Frames are easy to assemble.
• D-9005 Table Frames support up to 1500 lbs., evenly distributed on the table surface.
• Above and Below Table components can be added or deleted as required.
• Industrial Benches components are adjustable to accommodate the worker.
• All sheet metal components are 14-16 gauge steel.
